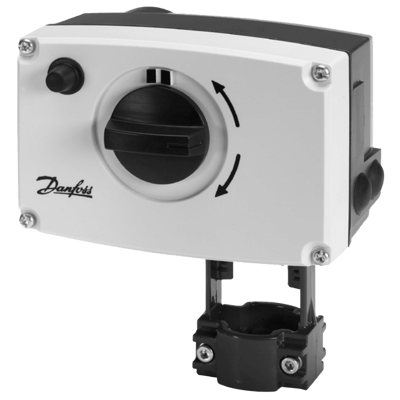

AMV 25/35 Three Point Control Actuator
Brand: DanfossAMV electric actuators are used with, VRB, VRG, VF, VL valves with additional adapter (Code No. 065Z0311, not supplied) and VFS 2 valves up to DN 50 diameter.
The actuator automatically adapts its stroke to valve end positions which reduces commissioning time. Optional auxiliary switches, feedback potentiometer and valve stem heater are available.
Features- The advanced design incorporates load related 'switch-off' to ensure that actuators and valves are not exposed to overload
- Digitale feedback end position indication signal for valve end position is available by terminal 4 or 5
- Low weight and robust
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 4
- Actuator Type - AMV 35
- Supply Voltage - 24 Vac
100+ In Stock
$555.00 CAD
Does not ship to OH, United States
- Actuator Type - AMV 25
- Supply Voltage - 230 Vac
100+ In Stock
$2,105.00 CAD
Does not ship to OH, United States
- Actuator Type - AMV 25
- Supply Voltage - 24 Vac
50+ In Stock
$280.00 CAD
Does not ship to OH, United States
- Actuator Type - AMV 35
- Supply Voltage - 230 Vac
21 In Stock
$1,413.00 CAD
Does not ship to OH, United States
Specifications
Brand
Ambient Temperature Range
- 0° to 55° C (32° to 131° F)
Approvals & Certifications
- CE
- EMC-Directive 2006/95/EEC: EN 60730-1, EN 60730-2-14
- Low Voltage Directive (LVD) 73/23/EEC
Consumption
- Power Consumption: 2 VA (AMV 25)
- Power Consumption: 7 VA (AMV 35)
Electrical Connectors
- Cable Gland
- M16 x 1.5
- M20 x 1.5
Environmental Protection
- IP54
Frequency
- 50/60 Hz
Input Signal
- Control Input: 3-Point
Mounting Position
- Horizontal
Override
- Manual Override
Power Supply
- 230 Vac, 10 to -15 %
- 24 Vac, 10 to -15 %
Process Temperature
- 150° C (302° F) Max.
Rotation
- 360°
Speed
- 11 seconds / 8.8 mm at 50/60 Hz - AMV 25
- 15 sec/mm
- 3 seconds / 2.4 mm at 50/60 Hz - AMV 35
Storage Temperature
- -40° to 70° C (-40° to 158° F)
