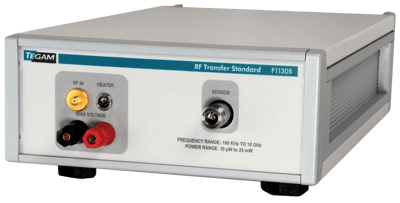

F1130B Feedthrough Power Standard
Brand: TegamThe TEGAM F1130B Temperature Controlled Coaxial RF Power Transfer Standard enables the precise measurement of microwave power in the 100 kHz to 18 GHz frequency range.
These units are extremely rugged, highly accurate, and stable with time and temperature.
They are ideal for use as standards for the transfer of calibration factors to RF power sensors.
Units are supplied with A2LA Accredited ISO/IEC 17025 Compliant Calibration.
The Model F1130B is a feedthrough Thermistor Standard and Power Splitter combination used for the calibration of thermistor, thermocouple, and diode power sensors.
Features- Used to calibrate RF Power Sensors in the new wider frequency range of 100 kHz to 18 GHz
- Standards are directly traceable to NIST
- Thermistor Standards are temperature controlled
- 0.01 to 25 mW dynamic range
- Primary and Working Transfer Standard configurations
- Rack mount option available
- A2LA Accredited ISO/IEC 17025 Compliant Calibration
Specifications
Brand
Accuracy
- ± 0.80 % from 0.1 to 10 MHz - Calibration Factor Accuracy
- ± 1 % from 0.01 to 10 GHz - Calibration Factor Accuracy
- ± 1.10 % from 10 to 18 GHz - Calibration Factor Accuracy
Approvals & Certifications
- A2LA
Approvals & Certifications
- CE
Calibration
- < 0.5 % Per Year - Calibration Factor Drift
Frequency
- 100 kHz to 18 GHz
Input Impedance
- 50 ohms - Nominal Impedance
Linearization
- < 0.1 % from 0.1 to 10 mW - Power Linearity
Mounting
- Rack-Mounted
NACE & NIST
- NIST - Traceable Calibration
Operating Temperature
- 12° to 40° C (54° to 104° F)
Power
- 0.01 to 25 mW (-20 to 14 dBm)
- 30 ± 0.7 mW - Thermistor DC Bias Power
Resistance
- 200 ohms - Thermistor Resistance at Bias
Sensitivity
- 13 ohms/mW - Thermistor Power Sensitivity
Sensor, Probe Type
- Thermistor
Storage Temperature
- -55° to 75° C (-67° to 167° F)
Update Time
- 2 Hours - Warm-Up Time
