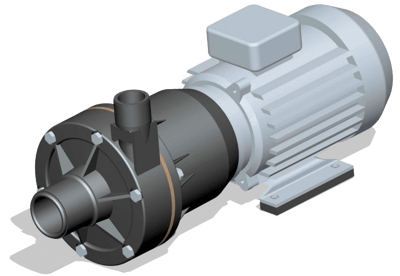

EMP270 17 Series Magnetic Drive Centrifugal Pump
Brand: FlojetSpecificationsManufactured in chemical resistant thermo-plastics – entirely non-metallic.
Magnetic couplings provide energy efficient thermal shield, minimizing heat transfer to pumped fluid.
IP55 standard motor housing.
High SG versions built to order.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 2
50+ In Stock
$1,801.00 CAD
Does not ship to OH, United States
50+ In Stock
$2,039.00 CAD
Does not ship to OH, United States
Specifications
Brand
Dimensions (H x W x D)
- 214 x 508 x 174 mm
- 8.4 x 20.0 x 6.9 (inches)
Frequency
- 50 Hz
Materials of Construction
- Alumina Ceramic Spindle & Thrust Washers
- PP Encapsulated Magnet, PVDF Optional
- PP Pump Housing, PVDF Optional
- PPS Spindle Housing
- Standard EPDM O-Ring, Optional Viton
Maximum Liquid Temperature
- -20° to 85° C
- -4° to 185° F
Maximum System Pressure
- 3 bar
- 44 psi
Motor Power
- 1100 (W)
Voltage
- 230 or 400 Vac
Weight
- 22 kg
- 48.5 lbs
