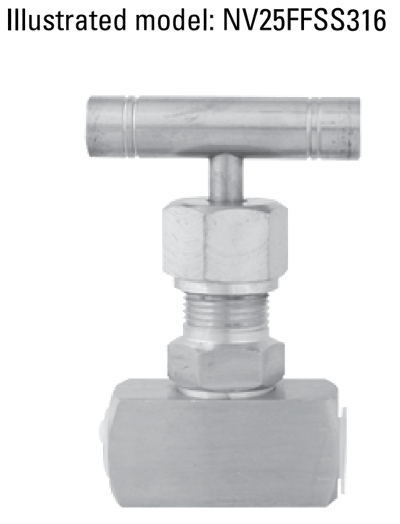

Model NVB/NVSS316 One Piece Needle Valve

Brand: Pitanco Precision

Conical stem which penetrates more or less in an orifice and serves to adjust the flow of a non-corrosive fluid.

It is always recommended to install a mini ball valve or a needle valve on a line before each pressure gauge installation.

Specifications

Housing

  • One Piece Brass - Model NVB
  • One Piece 316 Stainless Steel - Model NVSS316

Packing

  • Stainless Steel - Model NVB
  • Teflon - Model NVSS316

Connection

  • 1/4” NPTF x 1/4” NPTF - Only with NVSS316
  • 1/2” NPTF x 1/2” NPTF
  • 3/4” NPTF x 3/4” NPTF - Only with NVSS316
  • 1” NPTF x 1” NPTF - Only with NVSS316

Stem

  • Brass - Model NVB
  • 316 Stainless Steel - Model NVSS316

Operating Pressure

  • 0 to 2,000 psi / 13,790 kPa - Model NVB
  • 0 to 6,000 psi / 41,369 kPa - Model - NVSS316

Operating Temperature

  • < 300° F / 150° C - Model NVB
  • < 500° F / 250° C - Model NVSS316
