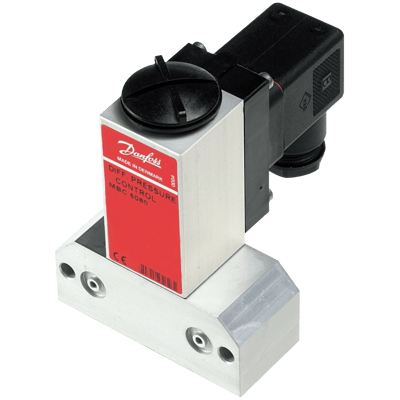

MBC 5080/MBC 5180 Differential Pressure Switch

Brand: Danfoss

MBC differential pressure switches are used in industry and marine applications where space and reliability are the most important features.

MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.

MBCs have high vibration resistance and feature all commonly marine approvals.
Features
  • Designed for use in severe marine and industrial environments
  • High vibration stability
  • Part of the Danfoss block-system, consisting of MBC pressure switches, MBS pressure transmitters and MBV test-valves
  • MBC 5180 with ship approvals
  • Low fixed hysteresis and high repeatability
  • Optimal compact design for machine building purposes
  • Intended for alarm indication, shut-down, control and diagnosing in many applications
    • motors, gears, thrusters, pumps, filters, compressors etc

Specifications

Brand

Approvals & Certifications

  • EN 60068-2-27
  • EN 60068-2-32
  • EN 60068-2-6
  • EN 60947-1
  • EN 60947-4-1
  • EN 60947-5-1
  • ABS
  • CCC
  • CCS
  • DNV
  • GL
  • KRS
  • LRS
  • NKK
  • RINA

BSP Connection

  • G 1/4” Female (ISO 228-1)

Burst Pressure

  • psi: 1,305 (kPa: 9,000, bar: 90) Min.

Diaphragm Material

  • NBR

Differential Pressure

  • psi: 4.351 to 72.52 (kPa: 30 to 500, bar: 0.3 to 5)

Electrical Connectors

  • PG11
  • PG13.5
  • PG9

Electrical Rating

  • 0.5 A at 250 V - Contact Load
  • 12 W at 125 V - Contact Load

Enclosure, Body Material

  • Anodized Aluminum Alloy (Anodized AlMgSi1, AW-6082 T6)

Environmental Protection

  • IP65, EN 60529

Frequency

  • 10/Minute (0.16 Hz) - Max.

Materials of Construction

  • Plug: Glass-Filled Polyamid, PA 6.6

O-Ring Material

  • NBR

Operating Pressure

  • psi: 652.7 (kPa: 4,500, bar: 45)

Operating Temperature

  • -10° to 85° C (14° to 185° F)

Pressure Cycles

  • > 100 Cycles - Electrical At, Max.
  • > 400 Cycles - Mechanical

Set Point - Decreasing

  • bar: 0.3 to 5
  • kPa: 30 to 500
  • psi: 4.35 to 72.5

Set Point - Increasing

  • bar: 0.3 to 5
  • kPa: 30 to 500
  • psi: 4.35 to 72.5

Shock

  • 50 G, 6 milliseconds
  • Free Fall, EN 60068-2-32

Static Pressure

  • psi: 1.45 (kPa: 10, bar: 0.1) - Max.
  • psi: 2.9 (kPa: 20, bar: 0.2) - Typical

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Switch Type

  • SPDT

System Pressure

  • bar: 45
  • kPa: 4,500
  • psi: 653

Vibration

  • 4 G, 25 to 100 Hz - Sinusoidal

Wetted Materials

  • Nickel-Plated Brass - Hole Plug
