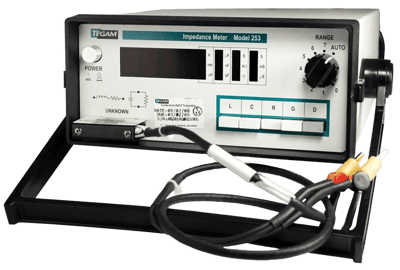

253 Auto-Ranging LCR Meter
Brand: TegamTEGAM Models 253 are used for evaluating and inspecting components.
These meters provide direct, digital display of inductance, capacitance, resistance, conductance and dissipation.
They have the versatility and basic measurement accuracy of 0.25%, to satisfy demanding engineering and inspection applications, while being extremely easy to use. Simply push the button for the desired function, set the range and connect to the unknown.
True four-terminal connections are ensured by the standard Kelvin Klip® test leads.
The measurement is displayed on the large 3-1/2 digit readout.
The Model 253 has all of the above characteristics, an auto-ranging feature, and includes one additional measurement range for C and G.
An optional power battery pack is available on the Model 253.
This allows the meter to be used with line power when available and unplugged when convenient or necessary.
Features- Automatic L, R, C, G and D measurements
- Basic accuracy 0.25%
- Auto-ranging version, 253
- Test frequency 1 kHz
- Shielded four-terminal connections to unknown
- Optional rechargeable battery power pack
Specifications
Brand
Accuracy
- ± 0.25 %
Current
- 1 μA to 100 mA - Test Signal
Display
- 3-1/2-Digit with Decimal Point
Dissipation
- 1.999
Electrical Connectors
- Guard Binding Post
- Terminal Block - Four Terminal
Frequency
- 1 kHz - Test Frequency
Measuring Range
- 2 ohms to 2,000 kiloohms - Rs
- 2 μS to 20 S - Gp
- 200 PF to 2,000 μF - Cp
- 200 μH to 200 H - Ls
Output Format
- Analog Output - L, C, R or G with Simultaneous Output of D for L & C
Power Requirement
- 100-125 V, 50/60 Hz
- 200-250 V, 50/60 Hz
- 4 W
Supply Voltage
- 0.01 to 1 Vrms to Test Signal for Voltage C & G
- 0 to 50 Vdc - External Bias
Temperature Range
- 0° to 50° C (32° to 122° F)
