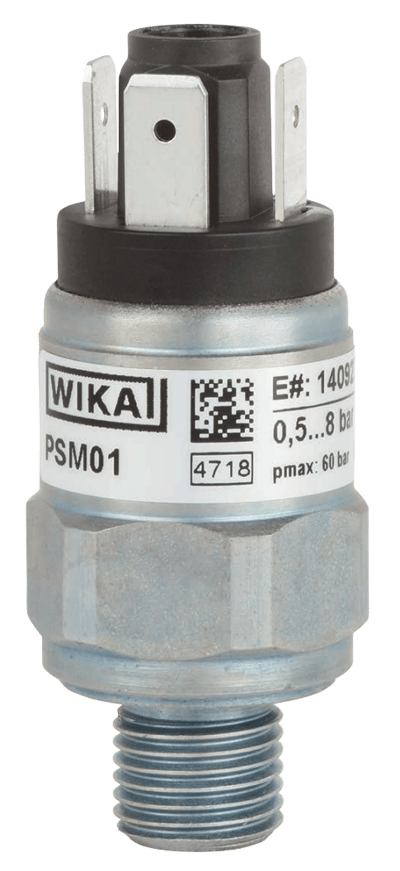

OEM Compact Pressure Switch - PSM01
Brand: WIKA Alexander Wiegand SE & Co. KGModel PSM01 screw-in pressure switches in a diaphragm or piston variant open or close a circuit, depending on whether the pressure is dropping or rising. An adjustment screw enables easy and convenient on-site setting of the required switch point. Optionally, WIKA offers its customers the factory setting of the switch point.
Features- High reproducibility.
- Compact design.
- Setting ranges -0.85 ... -0.15 bar and from 0.2 … 2 bar to 40 … 400 bar.
- Long service life due to high-quality micro switch.
- Socket wrench mounting.
Specifications
Seal Material
- NBR
- FKM
- EPDM
- TNBR
- FVMQ
Medium Temperature
- -40° to 100° C (-40° to 212° F)
Certifications & Approvals
- CE
Environmental Protection
- IP00
Process Connection
- G 1/8” B
- G 1/4” B
- M10 x 1
- 7/16”-20 UNF BOSS
- 1/8” NPT
- 1/4” NPT
- R 1/8”
- R 1/4”
- Hydraulics and mobile hydraulics
- Pneumatics
- Plastics injection moulding machines
- General machine building and plant construction
- Media: Compressed air, neutral and self-lubricating fluids, neutral gases
