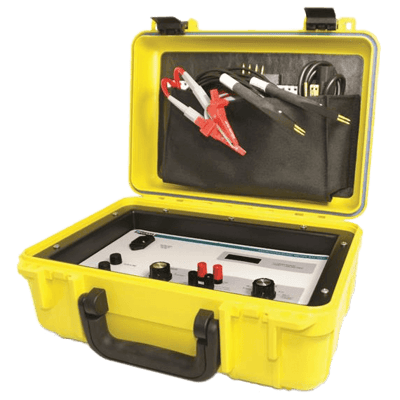

R1L-BR1 MicroOhm & Bond Meter

Brand: Tegam

The R1L-BR1 is designed to be used by all maintenance personnel without training.

The permanent front panel diagrams and instructions ensure that any user will be able to plug-in their choice of probe, turn it ON, select a range and make an accurate measurement without consulting the user manual.

The R1L-BR1 was designed to be the ideal solution for bond testing rotary wing aircraft in manufacturing and flight line maintenance operations.
Features
  • Field proven design
  • Four wire Kelvin measurement for 0.25% accuracy
  • Five Ranges: 2 MilliOhms to 20 Ohms.
  • Rechargeable batteries with a full day of use

Specifications

Brand

Accuracy

  • 0.25 % of Reading ± 1 Count

Current

  • 0.00014 to 1.4 A - Test Current

Measuring Range

  • 2 milliohms to 20 ohms

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Power Requirement

  • 3 High Capacity ‘C’ Nickel-Cadmium Rechargeable Batteries
  • 90-250 Vac, 50/60 Hz

Resolution

  • 1 Microohm at 2 milliohms Range

Storage Temperature

  • -40° to 71° C (-40° to 160° F)
