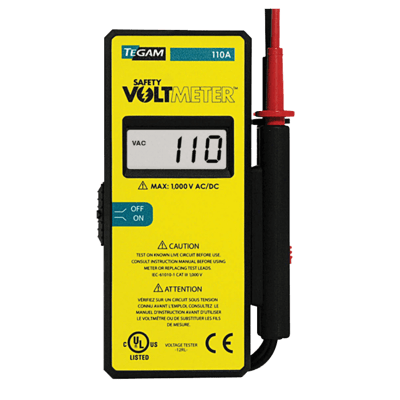

110A Safety Voltmeter
Brand: TegamThe C-UL-US listed Tegam Model 110A Safety Voltmeter is the only single switch, single range digital voltmeter that automatically tests for AC & DC volts to 1000 V and is factory-tested at 2500 V.
Features- C-UL-US Listed
- 1 MegaOhms Current Limiting Resistor in Each Probe
- Factory Tested at 2,500 V
- Permanently Attached Silicone Insulated Leads
- Automatically Detects AC or DC Voltage
- Designed Specifically to Enhance the Safety of Electricians in Industrial Environments
Specifications
Brand
Accuracy
- ± (0.2 % of Reading + 1 V), DC & 50/60 Hz
Approvals & Certifications
- CE
- UL
Display
- 0.5” (12.7 mm) LCD
- 3-1/2-Digits
Electrical Rating
- CAT III 1000 V
- CAT IV 600 V
Measuring Range
- ± 1000 Vac/dc
Operating Temperature
- -12° to 65° C (-10° to 150° F)
Resistance
- 10 megaohms - Input Resistance
Resolution
- 1 V
