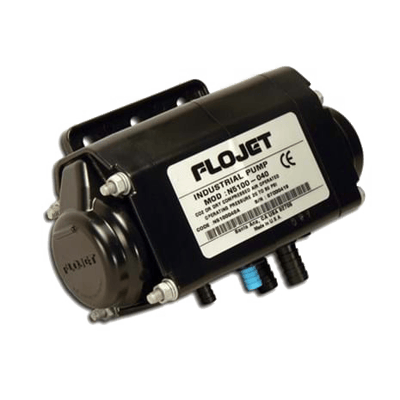

5100 Series Industrial Air Driven Pump

Brand: Flojet

FLOJET Industrial N5100 Series Pumps are designed for light general commercial and industrial applications.

These pumps are constructed from a selection of materials for handling a broad range of chemicals.

Flojet air-operated diaphragm pumps offer excellent self-priming capability. Pumps can be located above the supply tank.

A suctionside foot valve is recommended for best operation. Liquid pressure is regulated by supply air pressure.

No bypass or pressure relief plumbing is necessary. Choice of EP/PP blend, Buna, or FKM elastomers provide a wide range of chemical compatibility.

Quick disconnect liquid and gas port fittings provide easy installation.
Features
  • Compact design with plug-in hose connections for quick installation.

  • Variety of elastomers to ensure chemical compatibility.

  • Variable capacity from zero to the maximum flow.

  • No pressure relief or bypass plumbing required.

  • Excellent self-priming. Pump may be located above the liquid level.
  • Models matching criteria: 3
    N5100 Industrial Air Driven Pump
    100+ In Stock
    $2,336.00 CAD
    Does not ship to OH, United States
    N5100 Industrial Air Driven Pump
    50+ In Stock
    $1,934.00 CAD
    Does not ship to OH, United States
    N5100 Industrial Air Driven Pump
    25+ In Stock
    $2,392.00 CAD
    Does not ship to OH, United States

    Specifications

    Brand

    Air Supply Pressure

    • 1.4 to 5.6 bar
    • 20 to 80 psi

    Flow Rate

    • Maximum

    Port(s)

    • Air Inlet & Outlet 1/4” (6.3 mm) Barb
    • Liquid Inlet 3/8” (9.5 mm) Barb
    • Liquid Outlet 3/8” (9.5 mm) Barb.

    Self-Priming

    • Up to 28 feet (8.5 m)

    Temperature Range

    • 4.4° - 48.9° C
    • 40° - 120° F

    Weight

    • 0.5 kg
    • 1.10 lbs

    Wetted Parts

    • Check Valve Materials - Santoprene, Viton or Buna
    • Diaphragm Material - Santoprene, Geolast, Viton or Buna
    • Housing Material - Acetal Copolymer
