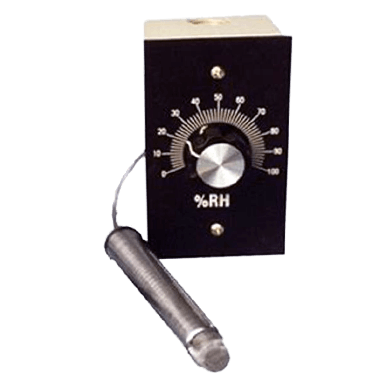

RHS-1 RH Set Point Controller & Probe

Brand: Tegam

The Model RHS-1 measures Relative Humidity (RH) and is also a setpoint RH controller.

The RHS-1 has two outputs: a 5 Amp 250 Vac SPDT controller relay and a 10 mV / % RH recorder output.

The setpoint and dead band controls are independent of each other, which makes setting these parameters fast and simple.

The included probe may be mounted up to 1,000 feet from the controller and includes a wall mounting bracket.
Features
  • Quality Relative Humidity Set Point Controller
  • Stainless Steel Probe (4.7" Long x 0.75" Diameter)
  • State-of-the-Art Thin Film Polymer Sensor
  • Recorder Output of 0 to1 V (or 0 to 5 V) for 0 to 100% RH Input
  • Independent Bandwidth Control
  • 5 Amps, 250 Vac SPDT Relay for Setpoint Output
  • Standard Metal "T" Box Enclosure

Specifications

Brand

Accuracy

  • ± 3 % Relative Humidity from 3 % to 95 % Relative Humidity

Approvals & Certifications

  • CE

Electrical Connectors

  • Screw Terminal

Electrical Rating

  • 5 A at 250 Vac
  • 5 A at 30 Vdc

Humidity

  • 3 to 95 % Relative Humidity

Input Power

  • 8-30 Vdc at 125 mA - Max.

Mounting

  • Wall Mounted

Operating Temperature

  • -20° to 85° C (-4° to 185° F)

Output

  • 0-1 V
  • 0-5 V
  • 10 mV/ % Relative Humidity
  • 30 Vdc
  • 5 A at 250 Vac

Sensor, Probe Material

  • Stainless Steel

Switch Type

  • SPDT Relay (Form C)
