M1130A Terminating Power Standard

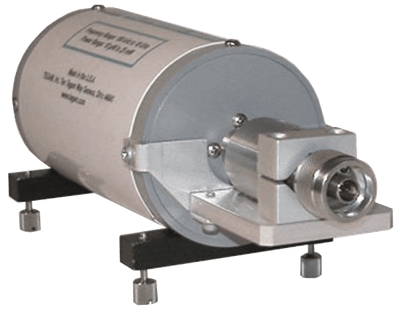

Brand: TegamThe TEGAM M1130A Temperature Controlled Coaxial RF Power Transfer Standard enables the precise measurement of microwave power in the 100 kHz to 18 GHz frequency range.
These units are extremely rugged, highly accurate, and stable with time and temperature.
They are ideal for use as standards wherever an accurate RF power measurement is required.
The Model M1130A is a terminating thermistor Reference Standard.
It is designed to be calibrated directly by a national standards agency such as NIST.
The M1130A is used for the calibration of feedthrough devices such as bolometer mount-coupler and bolometer mount-splitter RF standards.
It is also used in other applications requiring direct measurement of RF power, such as the calibration of the 50 MHz reference on RF power meters.
Features- Used to calibrate RF Power Sensors in the new wider frequency range of 100 kHz to 18 GHz
- Standards are directly traceable to NIST
- Thermistor Standards are temperature controlled
- 0.01 to 25 mW dynamic range
- Primary and Working Transfer Standard configurations
- Rack mount option available
- A2LA Accredited ISO/IEC 17025 Compliant Calibration
Specifications
Brand
Accuracy
- ± 1 % from 0.1 to 10 MHz - Calibration Factor Typical
- ± 1.20 % from 0.01 to 10 GHz - Calibration Factor Typical
- ± 1.30 % from 10 to 18 GHz - Calibration Factor Typical
Approvals & Certifications
- A2LA
Approvals & Certifications
- CE
Calibration
- < 0.5 % Per Year - Calibration Factor Drift
Frequency
- 100 kHz to 18 GHz
Input Impedance
- 50 ohms - Nominal Impedance
Linearization
- < 0.1 % from 0.1 to 10 mW - Power Linearity
Mounting
- Rack-Mounted
NACE & NIST
- NIST
Operating Temperature
- 12° to 40° C (54° to 104° F)
Power
- 0.01-25 mW (-20 to 14 dBm)
- 30 ± 0.7 mW - Thermistor DC Bias Power
- DC Power
- RF Power
Resistance
- 200 ohms - Thermistor Resistance at Bias
Sensitivity
- 13 ohms/mW Approximately - Thermistor Power Sensitivity
Sensor, Probe Type
- Thermistor
Storage Temperature
- -55° to 75° C (-67° to 167° F)
Update Time
- 2 Hours - Warm-Up Time
