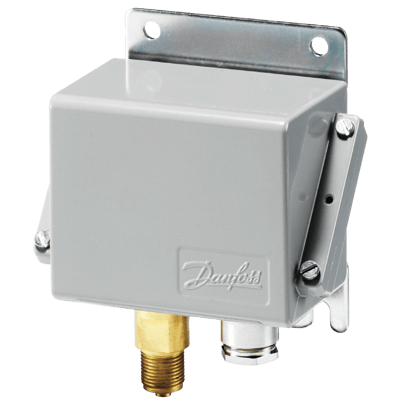

KPS Pressure Switch

Brand: Danfoss

The KPS Series consists of a series of pressure and temperature controlled switches.

In this series, special attention has been given to meeting demands for a high level of enclosure, robust and compact construction, and resistance to shock and vibration.

For KPS pressure switches the position of the contacts depends on the pressure in the inlet connection and the set scale value.

For KPS thermostats the position of the contacts depends on the temperature of the sensor and the set scale value.

The series covers most outdoor as well as indoor application requirements and is suitable for use in monitoring alarm and control systems in factories, diesel plants, compressors, power stations and on board ships.
Features
  • A high level of enclosure
  • Adjustable differential
  • Robust and compact construction
  • Resistance to shock and vibration
  • Available with all major marine approvals

Specifications

Brand

Accuracy

  • ± 0.2 to ± 6.0 bar - Scale

Ambient Temperature Range

  • -25° to 70° C (-13° to 158° F) - KPS 43 - 47
  • -40° to 70° C (-40° to 158° F) - KPS 31 - 39

Applications

  • Compressors
  • Control Systems in Factories
  • Diesel Plants
  • Monitoring Alarm
  • On-Board Equipment Ships
  • Power Stations

Approvals & Certifications

  • ABS
  • BV
  • CCC
  • CCS
  • CE Marked in Accordance With: -LVD 2006/95/EC (EN 60947-1, EN 60947-4-1, EN 60947-5-1)
  • DNV
  • GL
  • IEC 60529
  • KRS
  • LRS
  • NKK
  • RINA
  • RMRS
  • UL

BSP Connection

  • G 1/4” Female
  • G 3/8” Female A

Burst Pressure

  • psi: 3,481 (kPa: 24,000, bar: 240)

Cable Entry

  • PG13.5 for Cable Diameters from 5 to 14 mm

Connection Material

  • Brass, W. No. 2.0401 (DIN 17660) - Pressure Connection for KPS 35, KPS 37, KPS 39
  • Steel C20, Material Number 1.0420 (DIN 1652) - Pressure Connection for KPS 31, KPS 33

Current

  • 12 W, 220 V, DC-13 - Direct Current
  • 50 A, Max.

Diaphragm Material

  • Nickel-Plated Brass, DIN 50 968 Cu/Ni 5 (DIN 1756) - Diaphragm Capsule for KPS 43, KPS 45, KPS 47
  • Nitrile-Butadien Rubber - KPS 43, KPS 45, KPS 47

Differential Pressure

  • psi: 1.45 to 247 (kPa: 10 to 1,700, bar: 0.1 to 17)

Electrical Rating

  • 440 Vac at 10 A - ohmic
  • 440 Vac at 4 A - Inductive
  • 440 Vac at 6 A - Inductive

Enclosure, Body Material

  • Aluminum Die Cast

Environmental Protection

  • IP67

Function

  • Alarm
  • Thermostat

Materials of Construction

  • 304L Stainless Steel, Material Number 1.4306 (DIN 17440) - Bellows for Typical KPS 31, KPS 33 & KPS 35, KPS 37, KPS 39
  • Deep-drawn Plate, Material Number 1.0524 (DIN 1624) - Bellows Capsule for KPS 31, KPS 33
  • Gold-Plated Silver Contact - Contact Material

Maximum System Pressure

  • psi: 2,611 (kPa: 18,000, bar: 180)

Operating Pressure

  • psi: 87 to 653 (kPa: 600 to 4,500, bar: 6 to 45)

Overpressure & Static Pressure Limits

  • psi: 1,740 (kPa: 12,000, bar: 120)

Process Temperature

  • -25° to 100° C (-13° to 212° F) - KPS 43 - 47
  • -40° to 100° C (-40° to 212° F) - KPS 31 - 39

Sensor / Probe Type

  • Remote Sensor
  • Rigid Sensor

Set Point - Decreasing

  • bar: 0 to 60
  • kPa: 0 to 6,000
  • psi: 0 to 870.2

Set Point - Increasing

  • bar: 0 to 60
  • kPa: 0 to 6,000
  • psi: 0 to 870.2

Set Point Type

  • Falling Pressure
  • Rising Pressure

Switch Type

  • SPDT

System Pressure

  • bar: 120
  • kPa: 827
  • psi: 1,740

Temperature Range

  • -10° to 200° C (14° to 392° F)

Vibration

  • 2 to 30 Hz, 1.1 mm Amplitude
  • 30 to 300 Hz at 4 G

  • Factories
  • Diesel plants
  • Compressors
  • Power stations
  • On-board equipment ships
