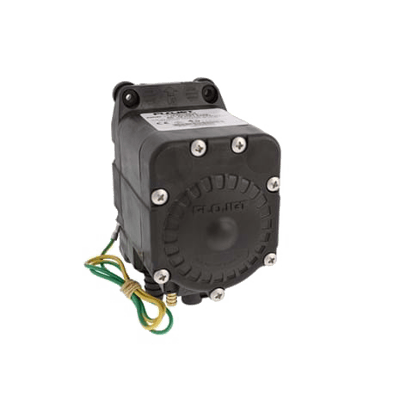

G70K Series ATEX Kalrez Air Operated Diaphragm Pump
Brand: Flojet
SpecificationsATEX approved.
Exclusively from Flojet.
Chemical resistant Kalrez® Diaphragms.
Capable of Air or CO2 drive pressures up to 100PSI (6.9bar).
Robust Design with durable integral mounting.
Patented Shuttle Valve eliminates stalling.
Capable of passing solids up to 3.2 mm diameter easily with large clog-free Check Valves.
Corrosion Resistant materials capable of handling a wide range of chemicals.
Ease of Installation with all quick disconnect ports.
Specifications
Brand
Air Supply Pressure
- 1.4 - 6.9 bar
- 20 - 100 psi
Flow Rate
- 18.9 (Lpm)
- 5 gpm
Port(s)
- Air Inlet & Outlet 1.4” (6.3 mm), Liquid Inlet & Outlet 3/8” (10-13 mm) or or 1/2” (12.7 mm) or 3/4” (19.1 mm),
Self-Priming
- Up to 15 feet (4.5 m)
Temperature Range
- 120° F
- 48.9° C
Weight
- 0.54 kg
- 1.2 lbs
