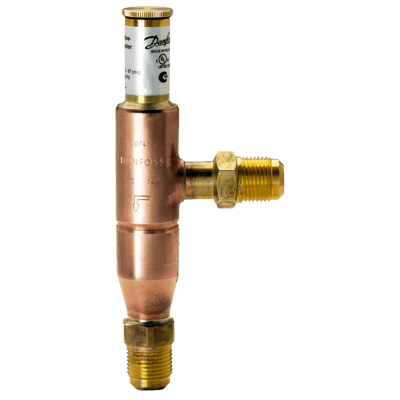

KVC Hot Gas Bypass Regulator
Brand: DanfossKVC hot gas bypass regulator are used to adapt compressor capacity to actual evaporator load by supplying a replacement capacity in form of hot / cool gas.
It is installed in a bypass line between the high and low pressure sides of the refrigeration system and is designed for direct gas injection into the suction line.
Features- Accurate, adjustable pressure regulation
- Wide capacity and operating range
- Pulsation damping design
- Stainless steel bellows
- Compact angle design for easy installation
- "Hermetic" brazed construction
- Available with flare or ODF solder connections
- Compliant with ATEX hazard zone 2
Specifications
Brand
Approvals & Certifications
- ATEX Hazard Zone 2
- EAC
- UL Listed, File SA7200
Capacity
- Compressor Capacity at -12° C = 15.4 KW
Connection Style
- Solder Terminals
Differential Pressure
- Offset psi: 1.45 to 17.4 (kPa: 10 to 120, bar: 0.10 to 1.2)
Electrical Connectors
- Protective Cap
- Soldering Connection
Environmental Protection
- Hazardous Zone 2
Flow Rate
- 0.400 to 1.088 scfm (0.68 to 1.85 m³/hour) - Kv Value At, Max.
Load
- Evaporator Load at -12° C = 10 KW
Materials of Construction
- Stainless Steel Bellows
Media
- Hot Gases
Operating Pressure
- Maximum
Pressure Range
- P-band Pressure: Max.
- Regulating Range - psi: 2.9 to 87 (kPa: 20 to 600, bar: 0.2 to 6)
Process Temperature
- -45° to 130° C (-49° to 266° F)
Proof Pressure
- Maximum
Setting Range
- Factory Setting: psi: 29 (kPa: 200, bar: 2)
Tube Connection
- 1/2” Tube
- 5/8” Tube
- 7/8” Tube
