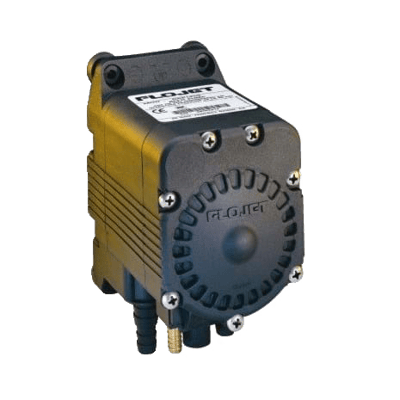

G58 Series Juice Condiment Pump

Brand: Flojet
Request Information
Favorite

Juice Concentrates and Condiments.
Features
  • Enlarged diameter check valves, capable of passing pulp and particulate easily.

  • Highest flow rate available. Capable of CO2 inlet pressures up to 90 psi (6.2 bar).

  • Ultimate performance and reliability with extended service life.

  • Built-in auto shutoff, automatically shuts off pump when bag is empty and restarts when a full bag is connected.

  • Quiet operation with exhaust muffler.

  • Easy installation with all quick disconnect ports.

  • High CO2 inlet supply capability, exceeds FCB machine requirements.

  • Service life over 100,000 gallons (378,000 L).

    • Displaying prices & availability for Ohio, United States in CAD. Change location.

    Models matching criteria: 2
    G58-1012 G58 Series Juice/Condiment Pump

    50+ In Stock
    $1,182.00 CAD
    Does not ship to OH, United States
    G58-1022S/T G58 Series Juice/Condiment Pump

    10 In Stock
    $1,613.00 CAD
    Does not ship to OH, United States

    Specifications

    Brand

    Dimensions

    • 13.38 x 8.15 x 11.63 (cms)
    • 5.27 H x 3.21 W x 4.58 D (inches)

    Displacement

    • 3.2 oz. Per Cycle

    Materials of Construction

    • Polypropylene, Santoprene, EPDM, AISI 303 & 304 Stainless Steel

    Maximum Liquid Inlet Pressure

    • 2.1 bar
    • 30 psi

    Operating Pressure

    • 1.4 - 6.2 bar
    • 20 - 90 psi

    Power Source

    • CO₂ Gas, Nitrogen or Compressed Dry Filtered Air

    Self-Priming

    • Up to 6 feet (1.83 m)

    Temperature Range

    • 1.1° - 49° C
    • 34° to 120° F

    Weight

    • 0.56 kg
    • 1.24 lbs
