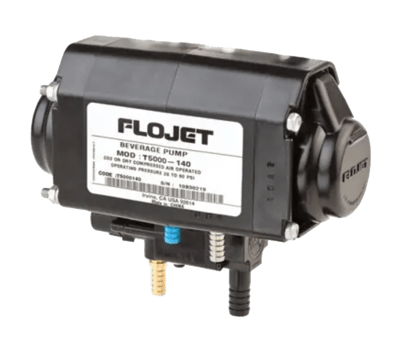

T5000 Series Gas C02 Air Driven Pump

Brand: Flojet

Specifications
  • Compact design with quick disconnection fittings for simple, quick installation.

  • Shuts off automatically when bag is empty and restarts when bag is connected.

  • High altitude shut-off also available.

  • Fully automatic, operates only when beverage is being dispensed.

  • 1/4" (6.35 mm) barbed, CO2 exhaust port connection for venting away from confined areas.

  • Maintains constant pressure at the dispensing valve.

  • High suction capability empties syrup down to a minimum residual.

  • Recyclable materials.
  • Models matching criteria: 7
    100+ In Stock
    $223.00 CAD
    Does not ship to OH, United States
    50+ In Stock
    $2,531.00 CAD
    Does not ship to OH, United States
    50+ In Stock
    $1,235.00 CAD
    Does not ship to OH, United States
    50+ In Stock
    $1,462.00 CAD
    Does not ship to OH, United States
    25+ In Stock
    $2,536.00 CAD
    Does not ship to OH, United States
    22 In Stock
    $1,741.00 CAD
    Does not ship to OH, United States
    21 In Stock
    $626.00 CAD
    Does not ship to OH, United States

    Specifications

    Brand

    Approvals & Certifications

    • CE, NSF Standard 18

    Dimensions (H x W x D)

    • 135.7 x 157.9 x 69.0 mm
    • 5.3/8 x 6.7/32 x 2.7/16 (inches)

    Displacement US Gallons (Litres)

    • 2.5 oz. Per Cycle

    Flow Rate US Gallons (Litres)

    • 4.0 oz./sec (118.3 mL/sec) - Open Flow

    Materials of Construction

    • Polypropylene, Santoprene, EPDM, 302 or 304 Stainless Steel Spring

    Maximum Liquid Inlet Pressure

    • 10 psi, 0.7 bar

    Mean Service Life

    • 40,000 Gallons (150,000 L)

    Operating Pressure

    • 20 - 80 psi, 1.4 - 5.5 bar

    Operating Temperature

    • 34° to 120° F (1.1° to 49° C)

    Pump Drive

    • CO₂ Gas, Nitrogen or Compressed Filtered Air

    Warranty Period

    • 5-Years

    Weight

    • 0.55 kg
    • 1.22 lbs
