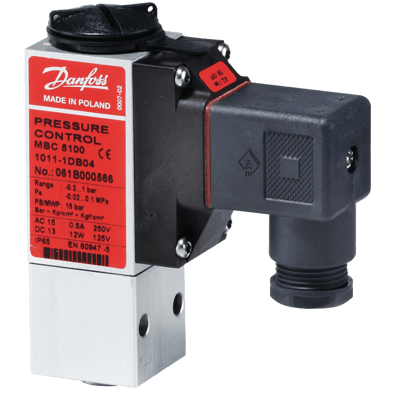

MBC 5000/MBC 5100 Heavy Duty Pressure Switch

Brand: Danfoss

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features.

MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships.

MBCs have high vibration resistance and MBC 5100 features all common marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures.

MBV test valves can be delivered as standard option for MBC.
Features
  • Designed for use in severe industrial, environments
  • High vibration stability
  • Part of the Danfoss block system, consisting of MBC pressure controls, MBS pressure transmitters and MBV test valves
  • MBC 5100 with all major ship approvals
  • High repeatability
  • Optimal compact design for machine building purposes
  • Intended for alarm indication, shut down, control and diagnostics in many applications - motors, gears, thrusters, pumps, filters, compressors etc.

Specifications

Brand

Applications

  • Compressors
  • Electric Motors
  • Filters
  • Infusion Pumps

Approvals & Certifications

  • EN 60947-1
  • EN 60947-4-1
  • EN 60947-5-1
  • ABS
  • BV
  • CCC
  • CCS
  • DNV
  • GL
  • KRS
  • LRS
  • NKK
  • RINA
  • RMRS

BSP Connection

  • G 1/4” Female
  • G 1/4” Male

Burst Pressure

  • psi: 435.1 to 17,400 (MPa: 3 to 120, bar: 30 to 1,200) Min.

Diaphragm Material

  • FKM

Differential Pressure

  • psi: 2.176 to 725.2 (kPa: 15 to 5000, bar: 0.15 to 50) - Fixed Differential

Electrical Connectors

  • PG11
  • PG13.5
  • PG9

Electrical Rating

  • 0.5 A at 250 Vac - Contact Load
  • 12 W at 125 Vdc

Enclosure, Body Material

  • Aluminum - Anodized AIMgSi1, AW-6082T6

Environmental Protection

  • IP65

Frequency

  • 10/Minute (0.16 Hz) - Max.

Materials of Construction

  • Contact System: Silver Microprofile
  • Plug: Glass-Filled Polyamid, PA 6.6

Metric Connection

  • M10 x 1 Female

O-Ring Material

  • NBR

Operating Pressure

  • psi: 217.6 to 8,702 (kPa: 1,500 to 60,000, bar: 15 to 600) - Permissible Operating Pressure

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Piston Material

  • 520 Stainless Steel (1.4028)

Repeatability

  • ± 0.2 % of Full Scale - Typical - Bellows Versions
  • ± 0.5 % of Full Scale - Diaphragm Versions, Bellows Versions
  • ± 1 % of Full Scale - Piston Versions, Diaphragm Versions

Seat / Seal Material

  • Turcon T05 - Seal (Piston Version)

Set Point - Decreasing

  • bar: -0.2 to 400
  • kPa: -20 to 40,000
  • psi: -2.90 to 5,802

Set Point - Increasing

  • bar: -0.2 to 400
  • kPa: -20 to 40,000
  • psi: -2.90 to 5,802

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Switch Type

  • SPDT

System Pressure

  • bar: 0 to 600
  • kPa: 0 to 60,000
  • psi: 0 to 8,702

Vibration

  • 20 G, 25 to 2 kHz - Sinusoidal
  • Piston Typical 4.4 G, 25 to 200 Hz - Sinusoidal

Wetted Materials

  • 304L Stainless Steel
  • 420 Stainless Steel
  • Anodized AIMgSi1, AW-6082T6
  • Nickel-Plated Brass - Hole Plug (Flange Version)
  • Zinc-Plated Steel - Hole Plug (Flange Version)

  • Infusion Pumps
  • Filters
  • Electric Motors
  • Compressors
