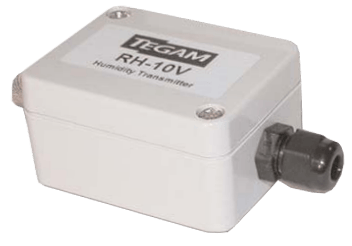

RH-10V RH Transmitter
Brand: Tegam
The RH Series of Relative Humidity (RH) transmitters has a built-in sensor and is designed to be mounted on a wall.
These transmitters can also be ordered in models that include Temperature as well as Relative Humidity measurements.
These transmitters come with either 4-20 mA or 0-1 V outputs, and they feature liquid-tight fittings for connecting cables.
Features- Compact Wall Mounting
- Built-in Sensor
- NEMA Housing
- 4-20 mA or 0-1 V Outputs
- Small Size
- Low Cost
- -20° to 75° C Operating Range
Specifications
Brand
Accuracy
- ± 0.6° C (± 1° F)
- ± 2 % - Humidity
Approvals & Certifications
- CE
- UL
Cap Material
- Stainless Steel - Filter Cap: Removable
Compensated Temperature
- -23° to 79° C (-10° to 175° F)
Electrical Connectors
- 22 to 14 AWG Wires
- Screw Terminal
Enclosure, Body Material
- ABS Plastic
Environmental Protection
- NEMA 12
- NEMA 13
- NEMA 4
- NEMA 5
Humidity
- 3 to 95 % Relative Humidity
Input
- 6-30 Vdc
Loop Resistance
- 0 to 1,450 ohms, Max.
Mounting
- Wall Mounted
Operating Temperature
- -20° to 75° C (-4° to 167° F)
Output
- 0-1 V
Response Time
- < 10 seconds
Temperature Range
- -20° to 75° C (-4° to 167° F)
