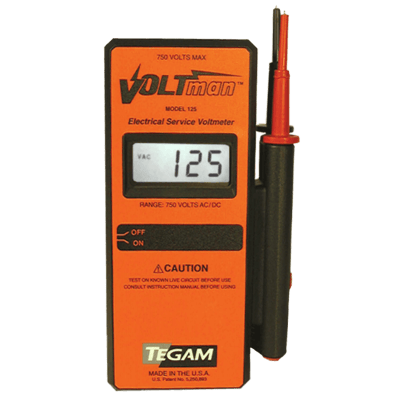

125 Voltman TRMS Voltmeter
Brand: TegamThe TEGAM Models 122 and 125 Voltman Safety Voltmeters are the only fully automatic single switch handheld digital voltmeters that will not give you a false reading when induced voltages are present.
The original Votlman was designed to provide the electric utility industry with a safe and efficient troubleshooting tool for the meter electrician, and has become a valuable tool in many other industrial applications.
Features- Eliminates False Readings when Induced Voltage is Present
- Single-switch, Single-range, AC/DC Measurement to 750 V
- Automatic Continuity Tester
- TRMS (125 only)
- Backlit Display, and Audible Continuity and Voltage Present Tones (122 only)
- Dual-probe Holder with Positive Lock Probe Extension for Safe, Easy Two-handed Operation
- Safety and Productivity.
Specifications
Brand
Accuracy
- ± (0.2 % of Reading + 1 V), DC & 50/60 Hz
Display
- 0.5” (12.7 mm) LCD
- 3-1/2-Digits
- Backlit
Input
- 750 V, Max.
Measuring Range
- ± 750 Vac/dc
Operating Temperature
- -12° to 65° C (-10° to 150° F)
Resistance
- 5 kiloohms - Input Resistance
Resolution
- 1 V
