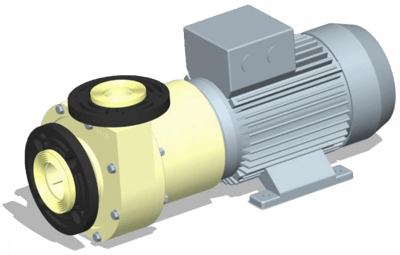

EMP800 30 Series Magnetic Drive Centrifugal Pump

Part Number: 048911 NEMP800/30 Magnetic Drive Centrifugal Pump Brand: Flojet
Price
$1,254.00 CAD
Stock
50+ In Stock
Request Information

Specifications
  • Manufactured in chemical resistant thermo plastics – entirely non-metallic.

  • Magnetic coupling provides energy efficient thermal shield, minimizing heat transfer to pumped fluid.

  • IP55 standard motor housing.

  • High SG versions built to order.

    • Specifications

    Brand

    Dimensions (H x W x D)

    • 10.7 x 24.2 x 10.8 (inches)
    • 271 x 615 x 275 mm

    Frequency

    • 50 Hz

    Materials of Construction

    • Alumina Ceramic Spindle & Thrust Washers
    • Bearing Material Carbon-Filled PTFE or Rulon
    • PP Encapsulated Magnet, PVDF Optional
    • PP Pump Housing, PVDF Optional
    • PPS Spindle Housing, PVDF Optional
    • Standard EPDM O-Ring, Optional Viton

    Maximum Liquid Temperature

    • -20° to 85° C
    • -4° to 185° F

    Maximum System Pressure

    • 3 bar
    • 44 psi

    Motor Power

    • 4000 (W)

    Voltage

    • 400 Vac

    Weight

    • 43 kg
    • 95 lbs
