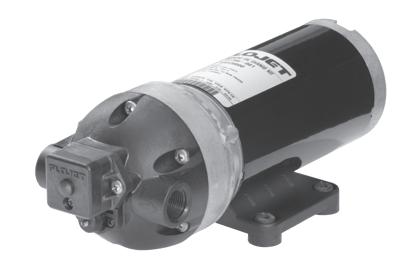

03711 / 03811 Series Triplex Hi-Pressure Diaphragm Pump
Brand: FlojetTriplex Hi-Pressure motor driven diaphragm pump.
Features- Constructed from a selection of materials suitable for handling a broad range of applications
- Sealed pressure switch and motor
- Self-priming up to 8 feet (2.3 m)
- Can be located above supply tank
- Can run dry for extended periods without damage
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 16
03811142 & R3811142 Triplex Hi-Pressure Diaphragm Pumps
100+ In Stock
$1,741.00 CAD
Does not ship to OH, United States
03811042 & R3811042 Triplex Hi-Pressure Diaphragm Pumps
100+ In Stock
$136.00 CAD
Does not ship to OH, United States
03811132 & R3811132 Triplex Hi-Pressure Diaphragm Pumps
100+ In Stock
$927.00 CAD
Does not ship to OH, United States
03811332 & R3811332 Triplex Hi-Pressure Diaphragm Pumps
50+ In Stock
$1,124.00 CAD
Does not ship to OH, United States
03811232 & R3811232 Triplex Hi-Pressure Diaphragm Pumps
50+ In Stock
$1,957.00 CAD
Does not ship to OH, United States
03711232 & R3711232 Triplex Hi-Pressure Diaphragm Pumps
50+ In Stock
$1,105.00 CAD
Does not ship to OH, United States
03711242 & R3711242 Triplex Hi-Pressure Diaphragm Pumps
25+ In Stock
$2,083.00 CAD
Does not ship to OH, United States
03711142 & R3711142 Triplex Hi-Pressure Diaphragm Pumps
25+ In Stock
$1,453.00 CAD
Does not ship to OH, United States
03811342 & R3811342 Triplex Hi-Pressure Diaphragm Pumps
25+ In Stock
$2,004.00 CAD
Does not ship to OH, United States
03711032 & R3711032 Triplex Hi-Pressure Diaphragm Pumps
25+ In Stock
$703.00 CAD
Does not ship to OH, United States
03711132 & R3711132 Triplex Hi-Pressure Diaphragm Pumps
20 In Stock
$78.00 CAD
Does not ship to OH, United States
03711342 & R3711342 Triplex Hi-Pressure Diaphragm Pumps
16 In Stock
$277.00 CAD
Does not ship to OH, United States
03811032 & R3811032 Triplex Hi-Pressure Diaphragm Pumps
16 In Stock
$714.00 CAD
Does not ship to OH, United States
03811242 & R3811242 Triplex Hi-Pressure Diaphragm Pumps
10 In Stock
$1,409.00 CAD
Does not ship to OH, United States
03711042 & R3711042 Triplex Hi-Pressure Diaphragm Pumps
7 In Stock
$2,133.00 CAD
Does not ship to OH, United States
03711332 & R3711332 Triplex Hi-Pressure Diaphragm Pumps
6 In Stock
$67.00 CAD
Does not ship to OH, United States
Specifications
Brand
Amperage Draw
- 9 Amp Max. for 12 Vdc, 0.95 Amp Max. for 115 Vac
Body Material
- Glass-Filled Nylon
Dimensions (H x W x D)
- 240 x 93 x 100 mm
- 9.44 x 3.67 x 3.93 (inches)
Duty Cycle
- Intermittent
Elastomers
- Santoprene Diaphragm & Viton or EPDM Valves
Frequency
- 50 or 60 Hz
Motor Type
- Permanent Magnet DC or Rectified (PMDC) AC
Operating Pressure
- Up to 140 psi (9.7 bar)
Port Size Inlet/Outlet
- 3/8” (9.52 mm) Female NPT
Voltage
- 110 or 230 Vac
- 12 or 24 (Vdc)
Weight
- 3.5 kg
- 7.6 lbs
