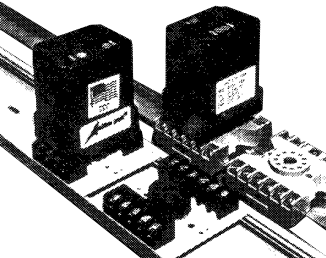

Model AP7010 Frequency Input Signal Conditioner
Brand: EurothermModel AP7010 is useful in any application requiring an Analog DC output from a pulse output transducer, such as a magnetic pickup or a turbine flowmeter.
The input amplitude may be as high as 50 Vrms, or as low as 50 mV rms.
This wide sensitivity range is compatible with magnetic pickup devices which typically exhibit an increasing output amplitude as the sensed frequency increases.
Features- Provides a DC output in proportion to a frequency input frequency input
- Adjustable sensitivity improves signal adjustable sensitivity improves signal quality
- 50 mV to 50 Vrms Inputs
- Direct magnetic pickup input direct magnetic pickup input
- Flow monitoring/control applications
- Easy plug-in installation/low mean-time- easy plug-in installation/low mean-timeto-repair
- AC Line powered (DC optional) AC line powered (DC optional)
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 1
- Input Range - 0-10 Hz
- Output Range - 0-1V
- Options - Canadian Standards Association Certification
- Line Power - 120VAC Standard
50+ In Stock
$374.00
CAD
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- CSA
Consumption
- Power Consumption: 3 W Typical
- Power Consumption: 5 W, Max.
Electrical Connectors
- 8-Pin
- Screw Terminal
Enclosure Finish
- Urethane Coating
Frequency
- Output Ripple (At Full Scale Frequencies Of): 10 to 499 Hz, < 0.25 % of Span
- Output Ripple (At Full Scale Frequencies Of): 500 Hz to 10 kHz, < 0.1 % of Span
Input
- 0 to 10 kHz
- 50 mV-50 V RMS
Input Impedance
- 10 kiloohms (Internally Limited for up to 50 Vrms Inputs)
Linearity
- Best Straight Line: 0.1 % of Span Typical
Mounting
- DIN Rail
- Mounting Holes
- Track/Surface
Operating Temperature
- 0° to 60° C (32° to 140° F)
Output
- 0-10 V
- 10 V Swing, Max.
- 4-20 mA
- 50 mA - Max.
- Open Circuit Voltage: 30 V, Max.
- Output Drive (Current): 15 V Compliance at 20 mA
- Output Drive (Voltage): 10 mA - Max.
Output Impedence
- Current: > 100 kiloohms
- Voltage: < 10 ohms
Power
- 120/240 Vac (± 10 %, 50/400 Hz)
- Optional: 24 Vdc (± 8 V, Inverter Isolated, Input Frequencies ≥ 500 Hz Only)
Response Time
- To 63 %: 500 milliseconds, or 100 times the Period of the Full Scale Frequency, whichever is greater
Span - Minimum
- Input: 10 Hz
- Output: 1 mA
- Output: 100 mV
Span & Zero Adjustments
- ± 10 % - Typical
Stability
- 0.05 % of Span/°C, Max.
Storage Temperature
- -20° to 85° C (-4° to 185° F)
Voltage
- Common Mode Voltage: 500 Vdc or Peak AC, Max.
