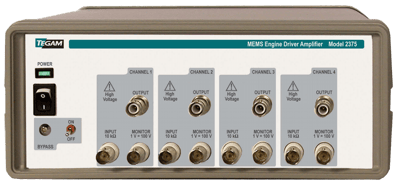

2375 MEMS Driver Amplifier
Brand: TegamThe Model 2375 is specifically designed for use with the TEGAM 9070 MEMS Engine Driver System (formerly Pragmatic 9014).
This system was codeveloped with Sandia National Laboratories for driving electrostatic, comb-type, rotating MEMS micro engines.
Model 2375 is a four-channel amplifier that may be used for other applications requiring precise signal amplification of unipolar or DC biased AC waveforms.
Features- Precise Signal Amplification for MEMS Engine Drivers or other Unipolar Applications.
- -7 to +150 V with 20 mA Output Current
- Full Power Bandwidth, from DC to 5 kHz (-0.1 dB)
- Four Independent Channels with Selectable Splitter Mode
- Voltage Monitor Outputs for Each Channel
- Compatible with any Standard Arbitrary Waveform or Function Generators
Specifications
Brand
Ambient Temperature Range
- 0° to 45° C (32° to 113° F)
Approvals & Certifications
- CE
Bandwidth
- DC to 5 kHz (-0.1 dB) - Full Power Bandwidth
Channels
- 4
Electrical Connectors
- BNC Connector
Humidity
- 80 % Relative Humidity, Non-Condensing
Input Impedance
- 10 kiloohms
Operating Temperature
- 0° to 45° C (32° to 113° F)
Output
- 0 to 150 Vdc to Splitter Mode
- 20 mA - Max.
- -7-150 Vdc - Splitter Bypass Mode
- Source Impedance 2 KilloOhms (100: 1 Ratio) - Voltage Monitor Output
Power Requirement
- 100 VA
- 80 W
Resistance
- < 0.2 ohms - Output Impedance
Response Time
- < 25 µs for 150 V Step (10 to 90 %) - Square Wave
Storage Temperature
- -20° to 50° C (-4° to 122° F)
Supply Voltage
- 110/220 V, 50/60 Hz - Rear Panel Selectable
