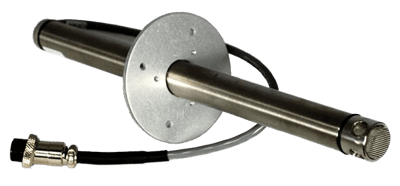

RDP-20C RH Temperature Transmitter & Probe
Brand: TegamThe RDP series transmitters are ideal for measuring Relative Humidity (RH) and temperature in enclosures or ducts.
The RDP requires a hole less than 1" inches diameter and can be inserted anywhere from 1" to 9" into the enclosure.
The RDP includes a bracket for wall mounting.
Features- Wall mounting bracket provided
- Transmitter built into the probe housing
- Adjustable or removable duct flange included
- Water tight stainless steel housing
- 4 to 20 mA or 0 to 1 V outputs
- 0 to 100 ºC operating range
Specifications
Brand
Accuracy
- ± 0.6° C (± 1° F) - Temperature
- ± 2 % Relative Humidity - Humidity
Approvals & Certifications
- CE
Cable Length
- 1 feet (0.3 metres)
Cap Material
- Stainless Steel - Filter Cap: Removable
Compensated Temperature
- -23° to 79° C (-10° to 175° F)
Electrical Connectors
- 26 to 18 AWG Wires
- 4-Pin Connectors on 12” Cable
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- NEMA 4
Humidity
- 3 to 95 % Relative Humidity
Input
- 6-30 Vdc
Loop Resistance
- 0 to 1,450 ohms at 6-30 Vdc
Mounting
- Wall Mounted
Output
- 4-20 mA
Response Time
- < 10 seconds
Temperature Range
- 0° to 100° C (32° to 212° F)
