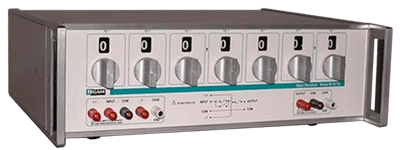

M-1011A Ratio Transformer

Brand: Tegam

The M-1011A AC Ratio Standard is an inductive voltage divider that meet or exceed all of the requirements for a calibration standard in precision measurement applications.

They are easily integrated into systems for calibration of voltage dividers, transformer standards, synchro/resolver standards, transformers, calibrators, ammeters, and voltmeters.

The ratio accuracy is traceable to the National Institute of Standards and Technology.

Specifications

Brand

Bandwidth

  • 50 to 10,000 Hz

Frequency

  • 50 to 10,000 Hz

Input

  • 350 V or 0.35f (f in Hz) whichever is less

Input Impedance

  • 200 kiloohms Min.

Linearization

  • 1 ppm

Mounting

  • Rack-Mounted

Resistance

  • 3.5 ohms - Output Impedance

Resolution

  • 0.1 ppm
