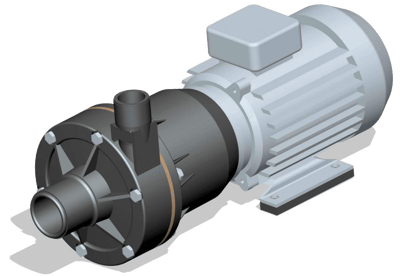

EMP200 12 Series Magnetic Drive Centrifugal Pump

Brand: Flojet

Specifications
  • Manufactured in chemical resistant thermoplastics – entirely non-metallic.

  • Magnetic coupling provides energy efficient thermal shield, minimizing heat transfer to the pumped fluid.

  • IP55 standard motor housing.

  • High SG versions available.
  • Models matching criteria: 2
    50+ In Stock
    $1,750.00 CAD
    Does not ship to OH, United States
    25+ In Stock
    $576.00 CAD
    Does not ship to OH, United States

    Specifications

    Brand

    Dimensions (H x W x D)

    • 171 x 418 x 125 mm
    • 6.7 x 16.5 x 4.9 (inches)

    Frequency

    • 50 Hz

    Materials of Construction

    • Alumina Ceramic Spindle & Thrust Washers
    • PP Encapsulated Magnet, PVDF Optional
    • PP Pump Housing, PVDF Optional
    • PPS Spindle Housing
    • Standard EPDM O-Ring, Optional Viton

    Maximum Liquid Temperature

    • -20° to 85° C
    • -4° to 185° F

    Maximum System Pressure

    • 2 bar
    • 29 psi

    Motor Power

    • 550 (W)

    Voltage

    • 230 or 400 Vac

    Weight

    • 21.2 lbs
    • 9.6 kg
