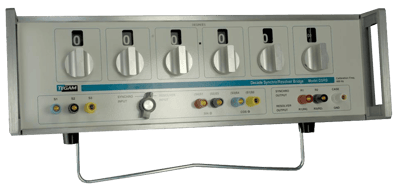

DSRB-5CDA-4 Decade Synchro Resolver Bridge

Brand: Tegam

The TEGAM DSRB combines the functions of a decade synchro bridge and a decade resolver bridge into a single unit.

A front panel switch changes the unit from one mode of operation to the other.

The units are designed for testing control transmitters, differentials (rotors), and torque transmitters as components or for simulating an incremental control transformer in a servo loop.
Features
  • 100° Increment Switching to Simulate Operation Over a Full 360°
  • Selective Output
  • No Warm-up Time
  • Age or Environmental Conditions Have Little Effect.
  • Switches Good for 100,000 Turns

Specifications

Brand

Accuracy

  • 4 seconds of Arc at Nominal Frequency - Angular Accuracy

Display

  • 0.375” High Digits

Electrical Connectors

  • 5-Way Binding Posts

Frequency

  • 400 Hz ± 5 % - Nominal Frequency

Input

  • 170 Vrms or 0.35f (f in Hz) whichever is less - Nominal Input Voltage
  • 170 Vrms, Max.

Input Impedance

  • 1 Megaohm at Nominal Frequency - Synchro Mode
  • 750,000 ohms at Nominal Frequency - Resolver Mode

Output Load

  • 300-j50 - Output Impedance

Resolution

  • 0.0001° - Angular

Rotation

  • 0° to 400° - Angular Range
