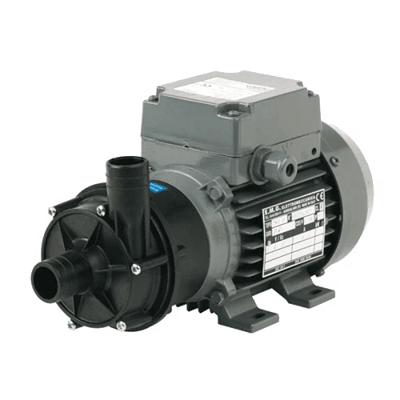

EMP100 6 Series Magnetic Drive Centrifugal Pump
Part Number: 028905 NEMP100/6 Magnetic Drive Centrifugal Pump Brand: FlojetPrice
$2,530.00 CAD
Stock
6 In Stock
SpecificationsManufactured in chemical resistant thermoplastics – entirely non-metallic.
Magnetic couplings provide energy efficient thermal shield, minimizing heat transfer to the pumped fluids.
IP55 standard motor housing.
For international markets.
Specifications
Brand
Dimensions (H x W x D)
- 146 x 271 x 108 mm
- 5.7 x 10.7 x 4.3 (inches)
Frequency
- 50 Hz
Materials of Construction
- Alumina Ceramic Spindle
- PP Encapsulated Magnet
- PP Pump Housing, PPS Optional
- PPS Spindle Housing
- Standard EPDM O-Ring, Optional Nitrile or Viton
Maximum Liquid Temperature
- -20° to 85° C
- -4° to 185° F
Maximum System Pressure
- 1.4 bar
- 20 psi
Motor Power
- 90 (W)
Voltage
- 400 Vac
Weight
- 3.6 kg
- 7.9 lbs
