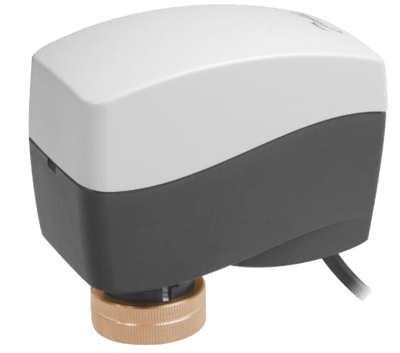

AMI 140 Modulating Control Actuator

Brand: Danfoss

AMI 140 is 2 point 3-Wires actuator used with AB-QM (DN 10-32) and VZ, VZL, VRBZ valves.

The actuator can be used with fan coil units, induction units, small re-heaters, re-coolers and zone applications in which hot/cold water is the controlled medium.

The actuator provides with factory default setting (actuators spindle fully stem up):
  • Normally closed function for AB-QM and
  • Normally open function for VZ, VZL, and VRBZ

Models matching criteria: 2
  • Supply Voltage - 24 Vac
100+ In Stock
$660.00 CAD
Does not ship to OH, United States
  • Supply Voltage - 230 Vac
100+ In Stock
$747.00 CAD
Does not ship to OH, United States

Specifications

Brand

Ambient Temperature Range

  • 0° to 55° C (32° to 131° F)

Approvals & Certifications

  • CE
  • EMC Directive 2006/95/EEC: EN 60730-1, EN 60730-2-14
  • LVD (Low Voltage Directive (LVD) 73/23/EEC)

Cable Length

  • 5 feet (1.5 metres)

Consumption

  • 1 VA at 24 Vac - Power Consumption
  • 8 VA at 230 Vac - Power Consumption

Electrical Contacts

  • Normally Closed
  • Normally Open

Environmental Protection

  • IP42

Frequency

  • 50/60 Hz

Mounting Position

  • Horizontal
  • Upright

Power Supply

  • 230 Vac
  • 24 Vac

Process Temperature

  • 130° C (266° F) - Max.

Speed

  • 12 sec/mm

Storage Temperature

  • -40° to 70° C (-40° to 158° F)
