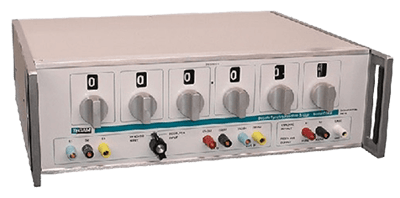

DSRS-5DA Decade Synchro Resolver Standard

Brand: Tegam

The TEGAM DSRS is essentially a decade resolver standard with a Scott-Tee to convert the output to a synchro standard output.

As a resolver standard, the DSRS generates two isolated outputs: one proportional to the sine of the angle displayed on the dials and the second proportional to the cosine.
Features
  • 100° Increment Switching to Simulate Operation Over a Full 360°
  • Selective Output
  • No Warm-up Time
  • Age or Environmental Conditions Have Little Effect.
  • Switches Good for 100,000 Turns

Specifications

Brand

Accuracy

  • 2 seconds of Arc at Nominal Frequency - Angular Accuracy

Display

  • 0.375” High Digits

Electrical Connectors

  • 5-Way Binding Posts

Frequency

  • 400 Hz ± 5 % - Nominal Frequency

Input

  • 115 Vrms - Nominal Input Voltage
  • 26 Vrms - Nominal Input Voltage

Mounting

  • Rack-Mounted

Output

  • 11.8 Vrms - Max.
  • 26-115 Vrms - Max.

Resistance

  • 0.01 + J.001 ohms - Output Impedance
  • 0.05 + J.005 ohms - Output Impedance

Resolution

  • 0.0001° - Angular Resolution

Rotation

  • 0° to 360° - Angular Range
