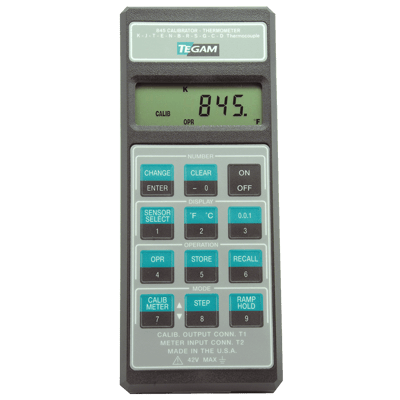

845 Calibrator Thermometer
Brand: TegamThe 845 adds several thermocouple types for greater flexibility in calibrating K-J-T-E-N-B-R-S-G-C and D-Type thermocouple thermometers in the lab or out in the field.
This device is a handy verification tool for QA inspectors and manufacturing engineers.
Features- Choose up to 11 Thermocouple types
- RTD, Ohms and Thermistor function (850 Series)
- 0.1° C (±0.2° F) RTD, 0.3° C (±0.5° F) Thermocouple and Thermistor Accuracy
- Calibrator and Thermometer in one unit
- 10 Memory locations
- Step and Ramp functions
- Free statement of traceability
- Shirt-pocket size, Drop-Proof, Splash-proof and Dust-proof case
- Two-year calibration guarantee plus three-year warranty
Specifications
Brand
Accuracy
- 0.3° C (0.54° F)
Ambient Temperature Range
- 18° to 28° C (64.4° to 82.4° F)
Approvals & Certifications
- CE
Display
- 5-Digit LCD
Electrical Connectors
- Round Connector - Typical-K Standard Round Pin Adapter
- Spade Lug Cable - Typical-K Miniature to Spade Lug Cable
NACE & NIST
- NIST - Certificate of Traceability
Power Requirement
- 9 V Battery
Sensor, Probe Type
- B Thermocouple
- C Thermocouple
- D Thermocouple
- E Thermocouple
- G Thermocouple
- J Thermocouple
- K Thermocouple
- N Thermocouple
- R Thermocouple
- S Thermocouple
- T Thermocouple
Temperature Range
- -230° to 1,000° C (-382° to 1,832° F)
Unit of Measure
- Celsius
- Fahrenheit
